Second Hand Concrete Trailer Pump 174KW Zoomlion HBT60.13.90SU

Product Categories

Hunan Sino-global Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Second Hand Concrete Trailer Pump 174KW Zoomlion HBT601390SU
Brand: Zoomlion
Price: 1 USD

Brand Name : Zoomlion

Model Number : HBT60.13-90RSU

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, L/C

Supply Ability : 20 untis per month

Delivery Time : 30-35 days after down payment

Packaging Details : Containers, RORO ship, Cargo bulk ship

Price : Negotiable

Model : Zoomlion HBT60.13.90SU Trailer Pump Model 2018

Color : Green and Grey

Rated Poer : 174KW

Rated Speed : 2300 r/min

Weight : 7300kg

Dimensions : 6800mm*2200mm*2700mm

Contact Now

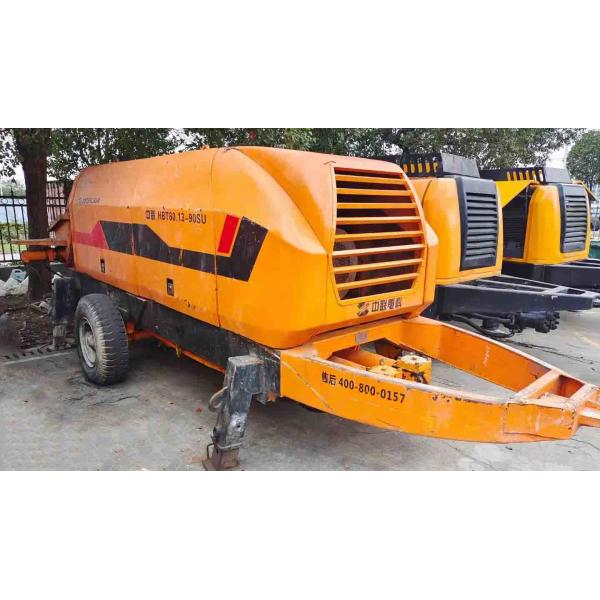

Used Zoomlion HBT60.13.90SU Trailer Pump Model 2018

Parameters of Zoomlion Trailer Pump Model 2018
Parameters of Zoomlion Trailer Pump Model 2018			60.16.174RSK
Whole performance of pump	Max. theo. concrete output(L./H.)	m3/h	76/46
	Max.concrete pumping pressure (H. /L.)	MPa	16/9
	Distributing valve style	/	S pipe valve
	Concrete cylinder diameter×stroke	mm	φ200×1800
	Hopper capacity×feeding height	L×mm	600×1400
	Outlet diameter	mm	Φ180
Power system	Diesel engine model	/	BF6M1013C
	Rated power	kW	174
	Rated speed	r/min	2300
Hydraulic system	Circuit type	/	Open circuit
	Pumping system pressure	MPa	34
	Distributing system pressure	MPa	23
	Mixing system pressure	MPa	14
	Max mixing speed	r/min	42
	Capacity of oil tank	L	600
Others	Max. aggregate diameter/ Inside diameter of delivering pipe	mm	50/Φ150 40/Φ125
	Inside diameter of delivering pipe	mm	Φ125/Φ150
	Dimensions:length×width×height	mm	6800×2200×2700mm
	Weight	kg	7300

Product Tags:

174KW Second Hand Concrete Trailer Pump
